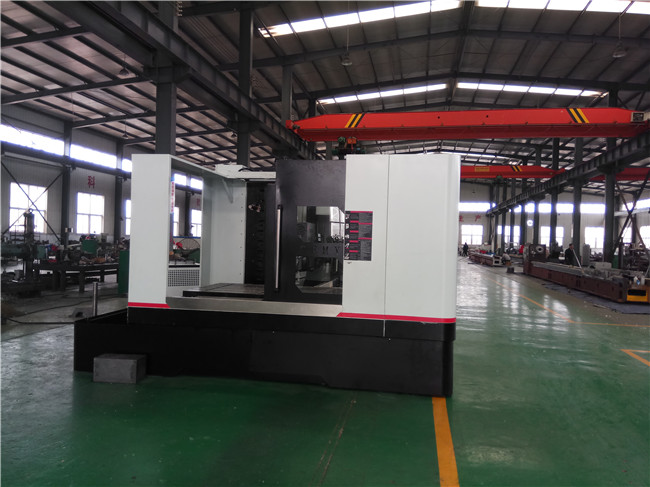

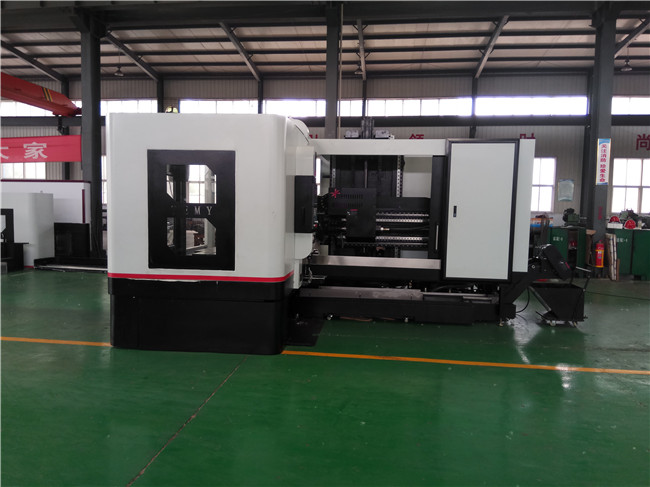

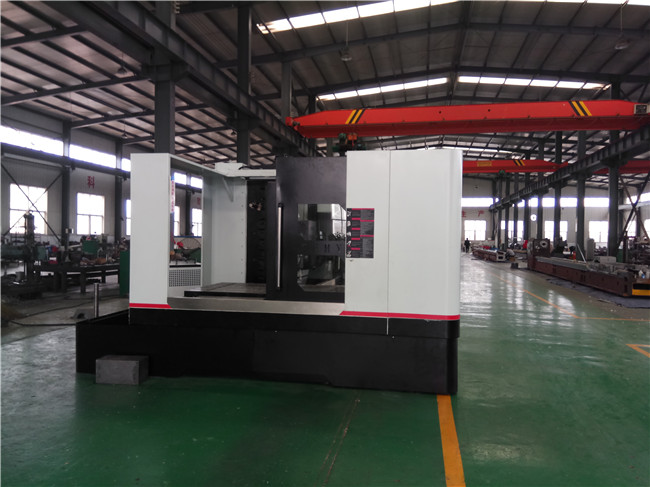

ZK2303 Three axis gun drill machine
This ZK2103 3axis gun drill machine is designed for 3 axis hole drilling , such as in plastic and rubber mold industry to drill water hole, heating hole, as well as hydraulic valve hole drilling, automobile and tractor ,generator and aviation industry deep hole drilling.
Ball lead screw are used for the feed system ensure smooth feeding and stable deep hole drilling.
High efficient ,high precision and high automation drilling machine.
Modular design, fast delviery.
| SPECIFICATION | ZK2303 | |
| Caoacity | Drill ID | Ø4-20mm |
| Drill depth | 300-1000mm | |
| Travel | X axis | 2000mm |
| Y axis | 1000mm | |
| Z axis | 1000mm | |
| Spindle | Spindle quantity | 1 |
| Drill box | Drill box speed | 300-5000RPM |
| Feeds | Feed speed | 10-500mm/min |
| Rapid speed | 3000mm/min | |
| Motors | Drill motor | 4Kw |
| X axis | 1.5kw AC servo | |
| Y axis | 1.5kw AC servo | |
| Z axis | 1.5kw AC servo | |
| Cooling motor | 7.5Kw | |
| Hydraulic motor | 1.5Kw | |
| Chips motor | 1.5Kw | |
| Coolant unit | Filtering precision | 50µm |
| Rated pressure | 1-10Mpa | |
| Coolant volume | 100L/min | |
| Tank capacity | 1000L | |
| Finished Hole precison | ID precision | IT7-11 |
| Roughness | Ra0.8-6.3 | |
| Straightness | <1.0/1000mm | |
| Precision | Position setting precison | 0.06mm |
| Repeat Position setting precison | 0.03mm | |
| Table | loading capacity | 2000kg |
| CNC option | GSK, KND, FANUC, Siemens | |
Standard accessories:
Oil cooler
Chip conveyor
Chip tray
Paper filter
Central auto lubrication
Ball screw and liner way
