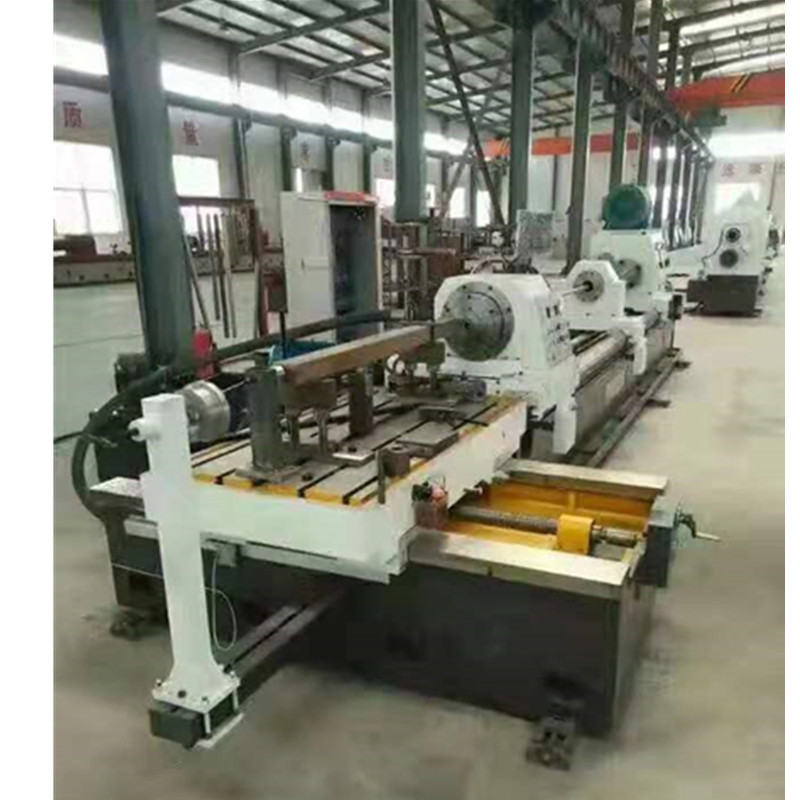

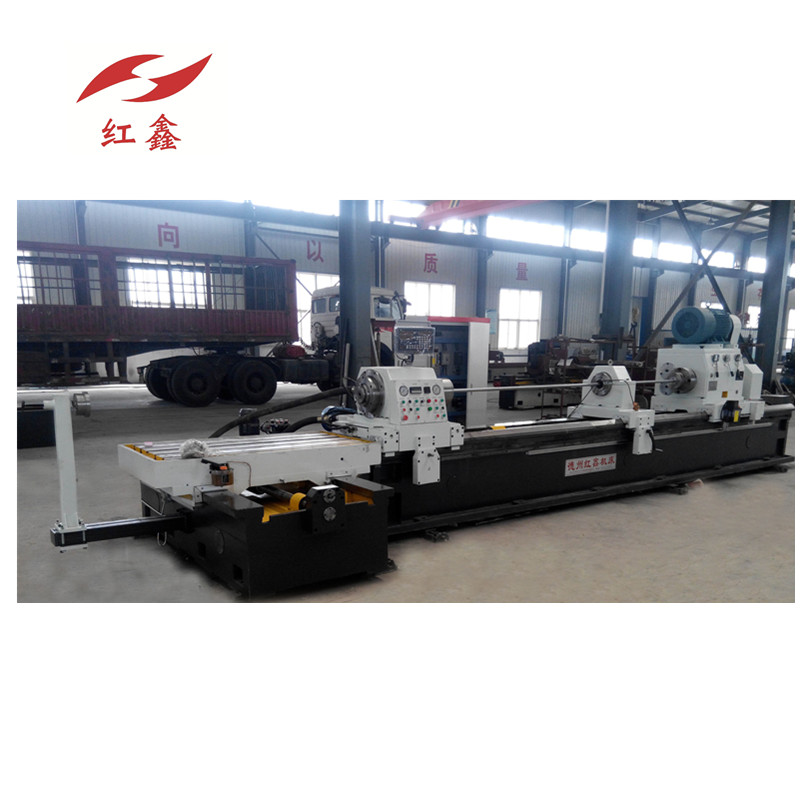

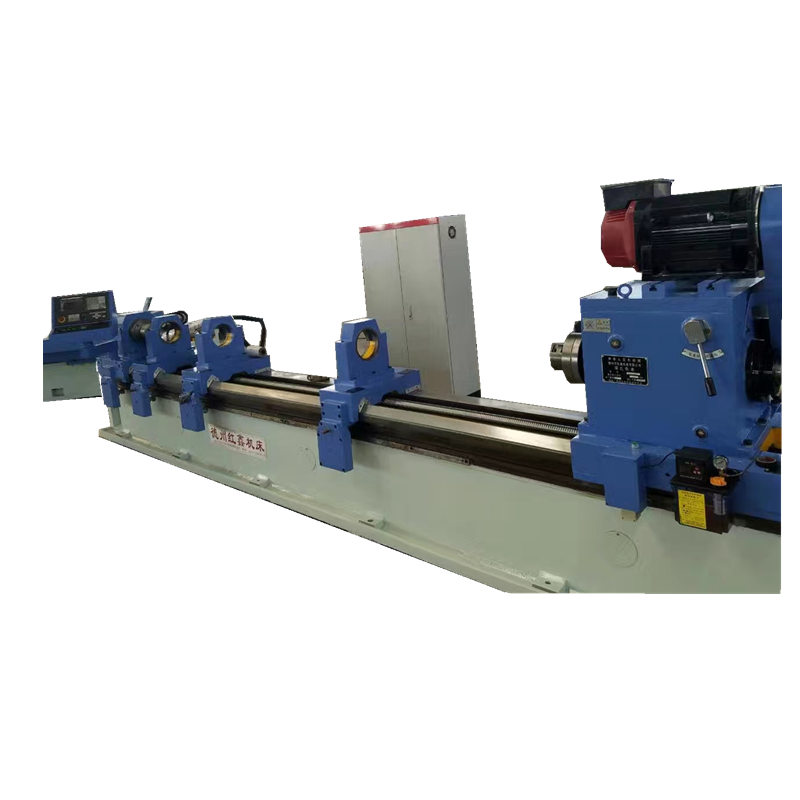

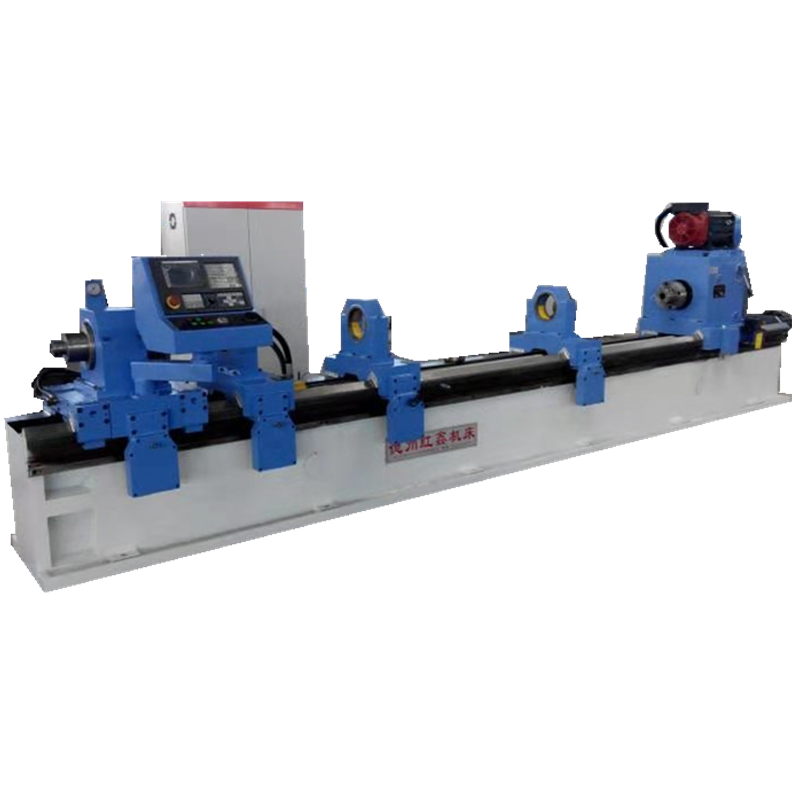

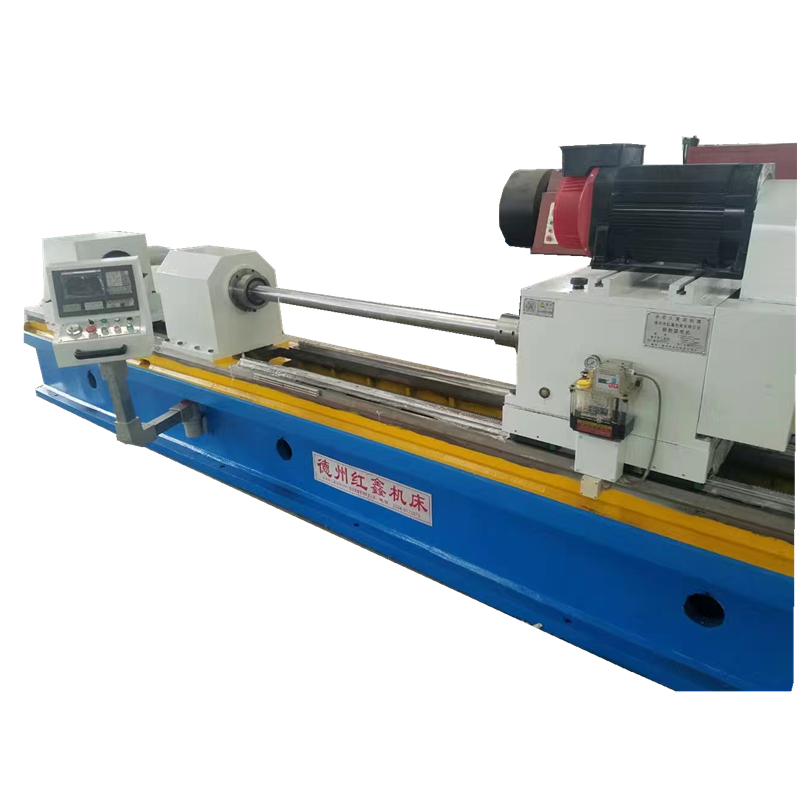

ZK2103x3000 heating plate drill machine

ZK2103x3000 heating plate drill machine

Drill diameter φ25～40mm；Maximum  drill depth 3000mm。

Parts of machine

1 Machine bed

  Made by high quality cast iron, there is drill box slide on machine bed.

2 Worktable  X axle

 There is T slot on worktable.

Worktable size 2500X2200mm,  X axle is driven by ballscrew and controlled by CNC system.

Heavy duty linear guide way.

3  Drill box , spindle motor drive, stepless speed adjustable. maximum speed 4000r/min.

4 Feed system  Z axle

Controlled by KND CNC  system, ballscrew  and linear guide way drive, feed speed 10-500mm/min.

5 Cooling system

Cooling system include: oil pump ,hydraulic components, chiller, chip conveyor. Oil volume 100L/min.

6 Centralized lubrication, drill box and feed carriage are automatic lubrication.

7 Hydraulic station

8 Electrical system: Chint electrical, KND CNC .

9 Guide frame : to guide drill head when drilling,

10 Drill tube support , to support drill tube and anti-vibratin.

Machine data

1、Spindle                                1

2、Drill diameter                     φ25～40mm

3、Max drill depth                      3000mm

4  Maximum workpiece size          3000X2000 mm

5 Workable size                    2500X2200 mm

6、speed of drill box             600～4000r/min

7、 drill head feed speed          10～500mm/min

8、Feed carraige rapid speed        2000mm/min

10、Z Feed servo motor torque             15Nm

11  X servo motor power              5.5Kw AC servo motor

12、 drill motor power               5.5Kw AC servo motor

13、 Cooling motor power               5.5kW

14、hydraulic motor                    0.55kW

15、Maximum cooling pressure           2.5MPa

16、 Max cooling volume              100L/min

Precision

1、Diameter precision IT8-11

2、Hole roughness Ra1.6～3.2μm；

3、Hole  deviation≤1/1000。
