Features of machine：

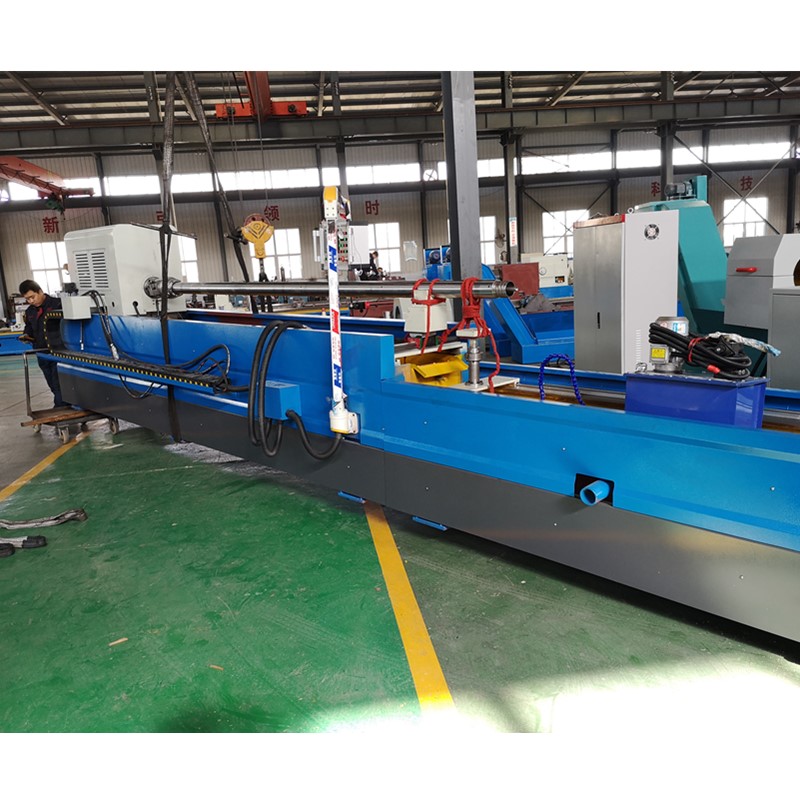

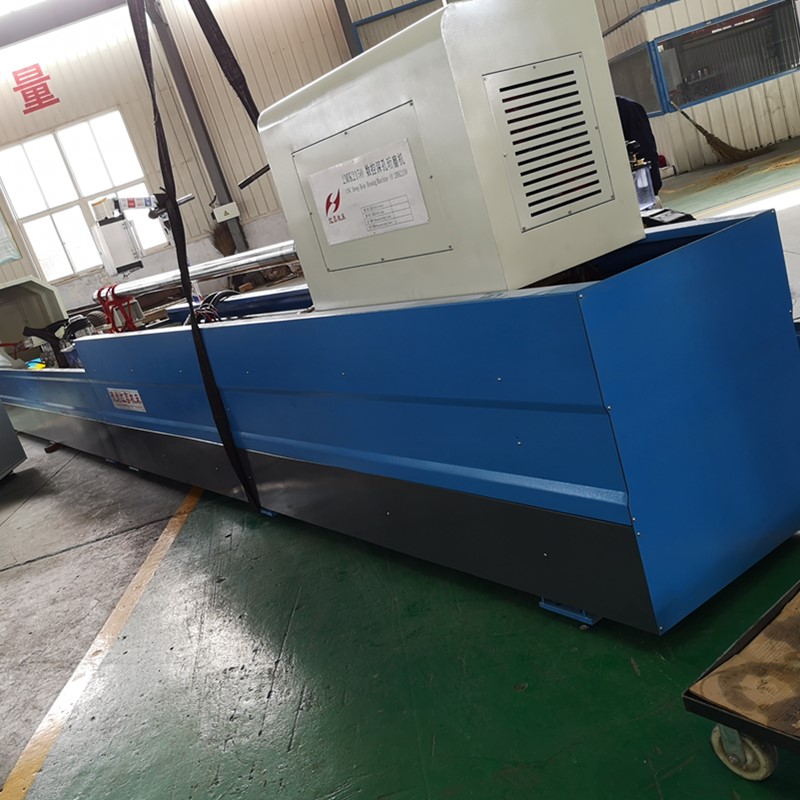

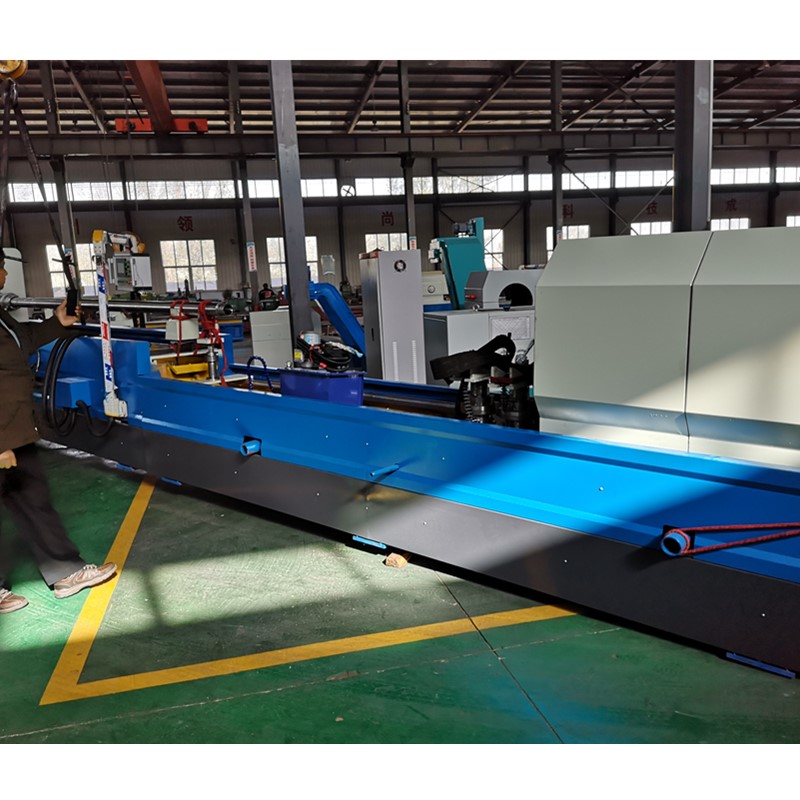

2MK2150 deep hole honing machine is suitable for honing cylindrical deep hole workpieces, such as various hydraulic cylinders, and other precision pipe fittings. The processing diameter accuracy can reach IT7~IT8 or above, the surface roughness can reach Ra0.2-0.4μm, and the roundness can reach 0.02mm or more. Partial honing can be used to correct the hole taper, ellipticity and partial aperture error of the workpiece.
The machine honing box adopts two shifts stepless speed regulation, and the servo motor drives the sprocket and the chain to realize the reciprocating movement of the honing head, and can control the position of the honing. At the same time, the rack and pinion and the slider are used, which have high service life and high precision. The honing head is expanded by hydraulic constant pressure, and the honing force of the honing stone is stable, so as to ensure the roundness of the workpiece. The honing pressure can be adjusted as needed. Other configurations of the machine such as hydraulic valves and automatic lubrication stations use famous brand products. The machine is equipped with CNC system to control machine movements.
When honing the workpiece is fixed, honing head rotates and reciprocating feeds, honing oil is supplied from both ends of workpiece and also form inside of honing tube.
II The basic technical parameters of 2MK2150 deep hole honing machine
Honing hole diameter range………… Ø80-500mm
Honing maximum depth…………………… 7m
The spindle height of center……………550mm

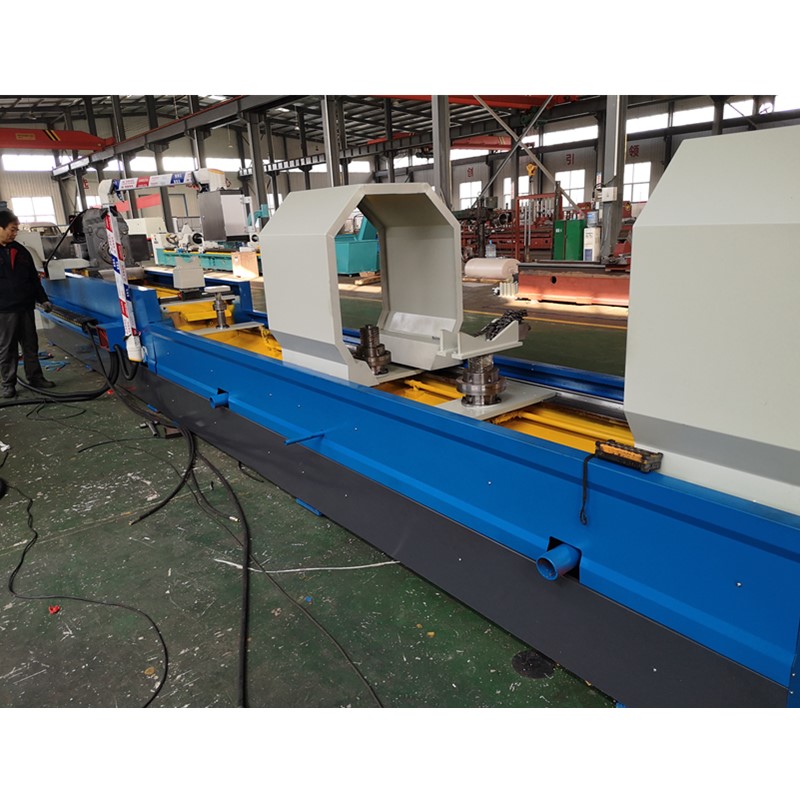

V block A Clamp workpiece diameter range……………Ø80-350mm
V block B Clamp workpiece diameter range……………Ø350-625mm
Honing stem box spindle rotating speed range……20—200r/min ( infinite)
Reciprocating movement speed range………0-12m/min(Stepless speed regulation)
Honing head expanding system pressure……………4Mpa
Main motor……………18.5kw (Beijing CTB Ac servo motor)
Reciprocating motor……………5kw(Ac servo motor)
Honing head expansion pump motor……………550W
Honing head expansion pressure …………… 4Mpa
Outside honing oil supply pump volume……………100L/min
Inner honing oil supply pump volume……………85L/min
Outside honing oil supply pump power……………250W
Inner honing oil supply pump power ……………450W
Machine dimension …………………… 17500X2300mm
Honing precision IT7-8
Honing roughness Ra0.2-0.4
